Steel Wire Braided Hose
+
  • Steel Wire Braided Hose

Steel Wire Braided Hose

High reliability: The hydraulic system can operate stably under high pressure and high load conditions. The design and manufacturing process of the parts ensure that it is sturdy and durable, can withstand greater pressure and impact, and reduce the possibility of failure

E-mail:info@chinastronger.com

Service Hotline:400 8866 678

Online consultation
Related Products

Product Details

  • Product description

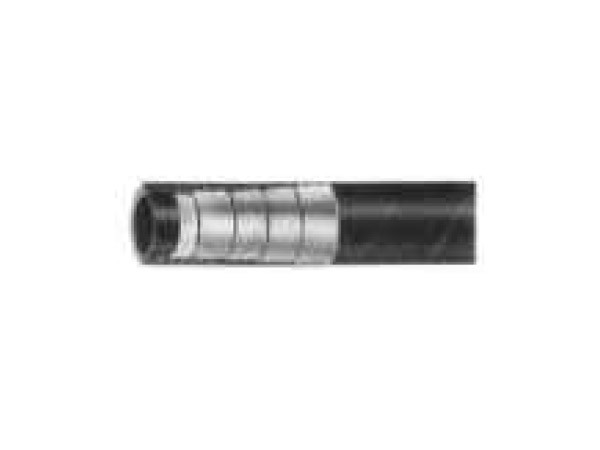

    • Commodity name: Steel Wire Braided Hose

    Liner: Oil-resistant synthetic rubber
    Reinforcement layer: 4 layers of steel wire braided reinforcement
    Cover layer: Oil-resistant and weather-resistant synthetic rubber
    Temperature range: -40℃ to +100℃
    Available connector core: xxxx2-xx-xx series



    Hose code Nominal inner diameter Hose size Hose inner diameter Hose outer diameter Maximum working pressure Minimum burst pressure Minimum bending radius Compatible sleeve
    HOSE DN HOSE SIZE HOSE I.D. HOSE O.D. MAX W.P. MIN.BURST PRESSURE MIN.BEND.RADIUS FERRULE
    PART NO. mm DASH Inch mm mm MPa MPa mm
    4SH12 19 -12 3/4" 19 32.2 42.0 168.0 280 S00400-12
    4SH16 25 -16 1" 25.4 38.7 38.0 152.0 340 S00400-16
    4SH20 32 -20 1.1/4" 31.8 45.5 32.5 130.0 460 S00401-20
    4SH24 38 -24 1.1/2" 38.1 53.5 29.0 116.0 560 S00401-24
    4SH32 51 -32 2" 50.8 68.1 25.0 100.0 700 S00401-32

Key words:

Steel Wire Braided Hose

Product Classification:

Hydraulic Hose Assembly
