S20418D-R5
+
  • S20418D-R5

S20418D-R5

High reliability: The hydraulic system can operate stably under high pressure and high load conditions. The design and manufacturing process of the parts ensure that it is sturdy and durable, can withstand greater pressure and impact, and reduce the possibility of failure

E-mail:info@chinastronger.com

Service Hotline:400 8866 678

Online consultation
Related Products

Product Details

  • Product description
    • Commodity name: S20418D-R5

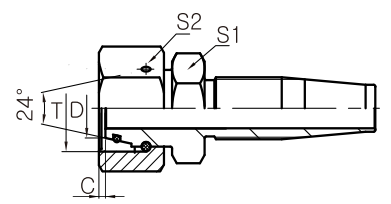

    Metric internal thread 24° tapered with O-ring light series

    Code
    PART NO.    		 Thread T
    THREAD T    		 Hose Bore Tube Outer Diameter D
    TUBE O.D    		 Dimensions
    Nominal Inner Diameter DN Dash   C S1 S2
    S20418D-14-04(R5) M14X1.5 5 4 8   1.4 12 17
    S20418D-16-05(R5) M16X1.5 6 5 10   2.1 14 19
    S20418D-18-06(R5) M18X1.5 8 6 12   1.8 17 22
    S20418D-22-08(R5) M22X4.5 11 8 15   3 19 27
    S20418D-26-10(R5) M26X1.5 13 10 18   2.1 27 32
    S20418D-30-12(R5) M30X2 16 12 22   3.8 30 36
    S20418D-36-16(R5) M36X2 22 16 28   4.5 36 41
    S20418D-45-16(R5) M45X2 22 16 35   4 41 50
    S20418D-45-20(R5) M45X2 28 20 35   4 41 50
    S20418D-52-24(R5) M52X2 35 24 42   4 50 60

Key words:

S20418D-R5

Product Classification:

Hydraulic Hose Fitting
